| 產品特性：音頻和視頻 | 是否進口：是 | 原產國/地區：德國 |
| 加工定制：否 | 品牌：Erika Fiedler OHG | 型號：EN55020/EN55015 |
| 產品用途：音頻和視頻信號處理 |
Erika Fiedler OHG EN55020隔離變壓器 帶阻濾波器LBS Erika濾波器（Erika Fiedler OHG隔離變壓器 LBS濾波器）
品牌：Erika Fiedler OHG
類別：變壓器 濾波器
型號：EN55020/EN55015
公司簡介：
自1980年成立以來，Erika Fiedler OHG Elektronische Ger?te Handel u.Fertigung一直為的音頻和視頻制造商提供服務，為他們提供符合IEC 1000-4-6、EN 55015、EN 55020和NAMUR NE 21的測試設備。公司對產品精度的追求和對客戶服務的承諾創造了合作伙伴。
Erika Fiedler OHG隔離變壓器 LBS濾波器介紹：
Measuring Aids per EN 55020
POS Descrip. Description
1.0 HP Highpass Filter 100 KHz
2.0 MSF Mains Filter 230V/50Hz/16A
2.1 MSF-A Mains Filter for Car - Radio 12V/8A
3.0 Typ AC Coupling Unit (for coaxial Antenna Inputs)
4.0 Typ MC Coupling Unit (for Mains Connection) 230V/50Hz/4A
5.0 Typ LC Coupling Unit (for Loudspeaker Connection)
6.1 Typ SR Coupling Unit with Matching Impedance 2,2 KOhm
6.2 Typ SR Coupling Unit with Matching Impedance 22 KOhm
6.3 Typ SR Coupling Unit with Matching Impedance 47 KOhm
6.4 Typ SR Coupling Unit with Matching Impedance 470 Kohm
6.5 Typ SR Coupling Unit with Matching Impedance 600 KOhm
6.6 Typ SR Coupling Unit with Matching Impedance 600 Ohm
7.0 TEM Stripline (Jacky) (Mechanics only)
8.0 ABS Absorber on nonmetallic wooden stand (For one Installation you need 9 pieces of Pos 8.0 )
9.0 MN Matching Network 50-150Ohm;5Watt
9.1 MN Matching Network 50-150Ohm;20Watt
10.0 TI Terminating Impedance 150Ohm;4Watt
10.1 TI Terminating Impedance 150Ohm;15Watt
11.0 MPL Measuring plate for S2 measurements (incl. ground connection)
12.0 MT Measuring Table 1000 x 500 mm (Height 100 mm ) nonmetallic
13.0 MBS Mains Filter for S3 testing 230V/50Hz/16A

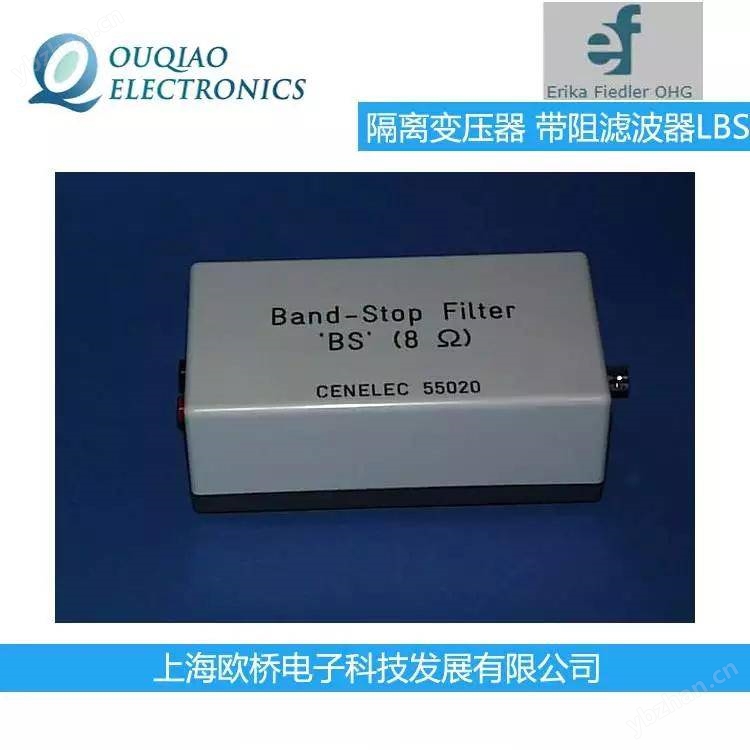

14.0 LBS Bａnd Stop Filter (For laudspeakers) 8 Ohm
15.0 TP Lowpass Filter 15 KHz (19 KHz Notch) Impedanz = 600 Ohm
16.0 BP Bandpass Filter 0,5 - 3,0 KHz
17.1 Type 1 Scart Adapter for S3 (Plastic Housing)
17.2 Type 2 Scart Adapter for S2 (Metall Housing)
17.3 Type 3 Scart Adapter for S2 (Metall - only Video lines with ferrites)
17.4 Type 4 Scart Adapter for S2 (Metall - no lines with ferrites)
18.1 RCi RC Network for Audio Inputs Ri = 100 Ohm
18.2 RCi RC Network for Audio Inputs Ri = 2,2 KOhm
18.3 RCi RC Network for Audio Inputs Ri = 22 KOhm
19.1 RCo RC Network for Audio Outputs Rl = 8 Ohm
19.2 RCo RC Network for Audio Outputs Rl = 300 Ohm
19.3 RCo RC Network for Audio Outputs Rl = 10 KOhm
20.1 RL Speaker Load Rl = 8 Ohm
20.2 RL Speaker Load Rl = 16 Ohm
21.1 PD Power Divider 20 dB 15 Watt
21.2 PD-50 Power Divider 20 dB 50 Watt
其它相關產品：
EN 55015 系列
Artificial Lamps Linear
Artificial Lamps U - Version
Artificial Lamps circular - Version
Artificial Lamps linear (15 mm)
Artificial Lamps single capped (Socket 2 G 7)
Artificial Lamps single capped Twin version (G 23)
Artificial Lamps single capped Quad version (G 24)
Testfixture
Transformer
IEC 1000-4-6 系列
IEC62493 系列
